Panasonic Electronic Components

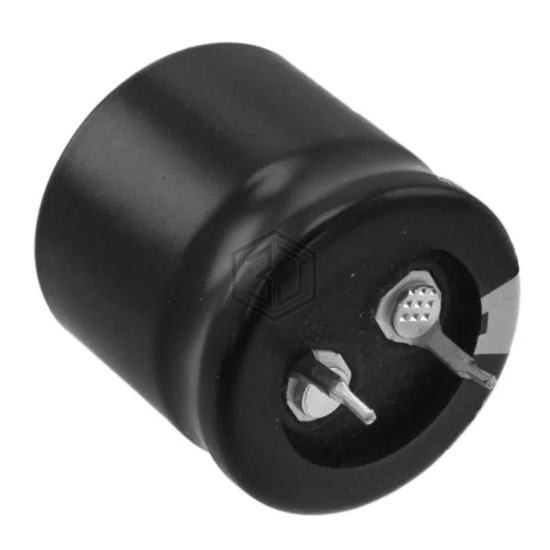

CAP ALUM 1000UF 20% 100V SNAP
ECO-S2AP102CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,803
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 216mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.96 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.254 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP102CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205679102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 100V SNAP | 86% | View |
| KY35VB102M12X25LL | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 70% | View |
| 250MXC1000MEFCSN35X35 | Rubycon | CAP ALUM 1000UF 20% 250V SNAP | 64% | View |
| B43252B2108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 60% | View |
| ELXV350ETS102ML20S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 58% | View |
| RZW102M1CBK-1020S | SURGE | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ECO-S2AP102CA and get a quote within 24 hours.
