Panasonic Electronic Components
CAP ALUM 3300UF 20% 100V SNAP

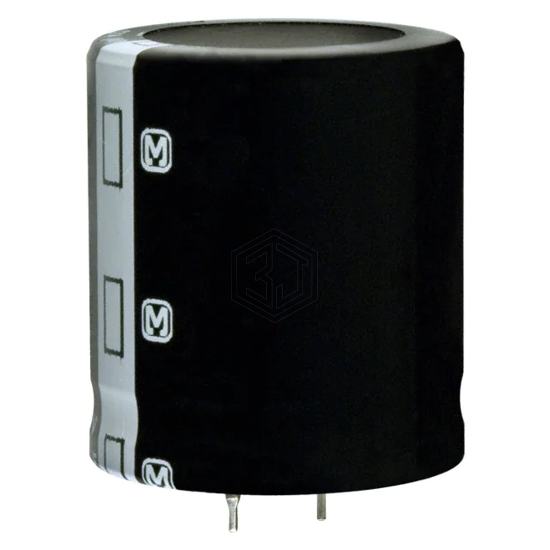

ECO-S2AA332EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3300UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,331
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 75mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AA332EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-350ELL332ML40S | United Chemi-Con | CAP ALUM 3300UF 20% 35V RADIAL | 75% | View |
| 63MXG3300MEFCSN25X30 | Rubycon | CAP ALUM 3300UF 20% 63V SNAP | 71% | View |
| B41696A5338Q7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 25V AXIAL | 70% | View |
| ELXG630VSN332MQ50S | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 69% | View |
| EKY-250ELL332MM25S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
| B41896C3338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 10V RADIAL | 63% | View |
