Panasonic Electronic Components
CAP ALUM 2200UF 20% 100V SNAP

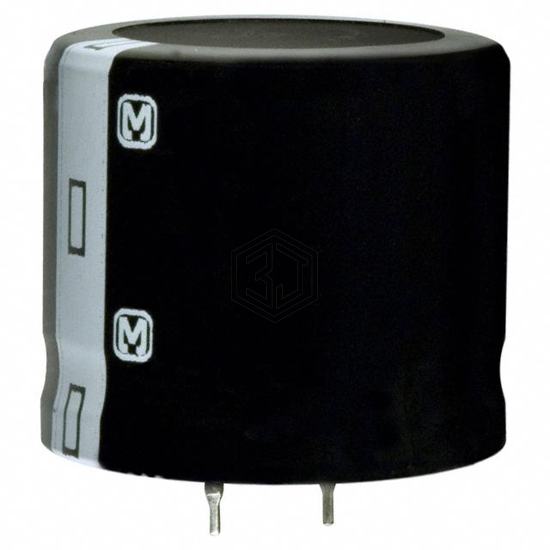

ECO-S2AA222EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,470
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.99 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AA222EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 80V SNAP | 86% | View |
| EEU-FC1H222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 50V RADIAL | 77% | View |
| EKZM350ELL222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 73% | View |
| MAL215050222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 66% | View |
| B43509A2228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 63% | View |
| EEU-FS1A222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V RADIAL | 62% | View |
Submit your RFQ for ECO-S2AA222EA and get a quote within 24 hours.
