Panasonic Electronic Components
CAP ALUM 1800UF 20% 100V SNAP

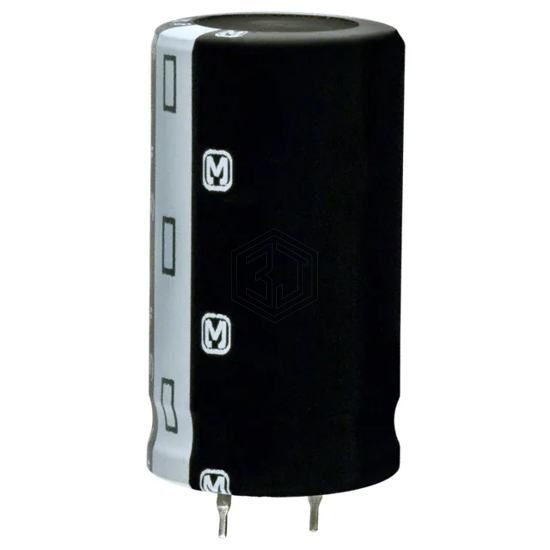

ECO-S2AA182CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 8,300
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 111mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.645 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AA182CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY2A182MELB35 | Nichicon | CAP ALUM 1800UF 20% 100V SNAP | 93% | View |
| 381LX182M160K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 160V SNAP | 73% | View |
| 35ZLQ1800MEFC16X20 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 70% | View |
| B41896D5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 69% | View |
| ELXV250EC3182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 65% | View |
| ELXY350ELL182ML30S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 64% | View |
