Panasonic Electronic Components

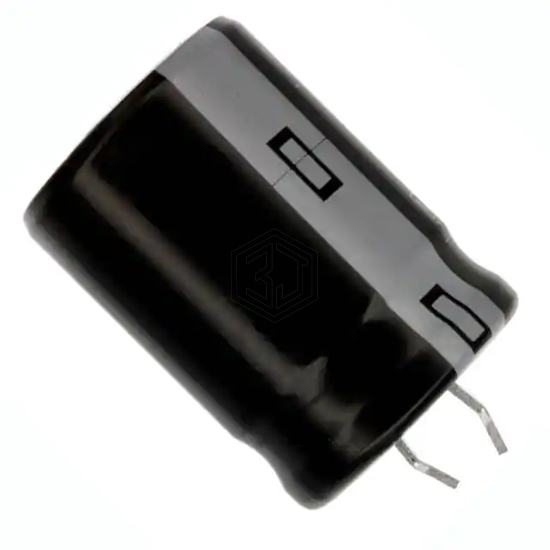

CAP ALUM 1500UF 20% 100V SNAP
ECO-S2AA152BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,951
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 122mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AA152BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 73% | View |
| LGN2P152MELB50 | Nichicon | CAP ALUM 1500UF 20% 220V SNAP | 59% | View |
| 860080275018 | Würth Elektronik | CAP ALUM 1500UF 20% 10V RADIAL | 59% | View |
| 604D152G040JL7 | Vishay Sprague | CAP ALUM 1500UF 40V AXIAL | 56% | View |
| 10YXH1500MEFC10X23 | Rubycon | CAP ALUM 1500UF 20% 10V RADIAL | 52% | View |
| EST158M016AH5AA | KEMET | CAP ALUM 1500UF 20% 16V RADIAL | 52% | View |
Submit your RFQ for ECO-S2AA152BA and get a quote within 24 hours.
