Panasonic Electronic Components
CAP ALUM 6800UF 20% 35V SNAP

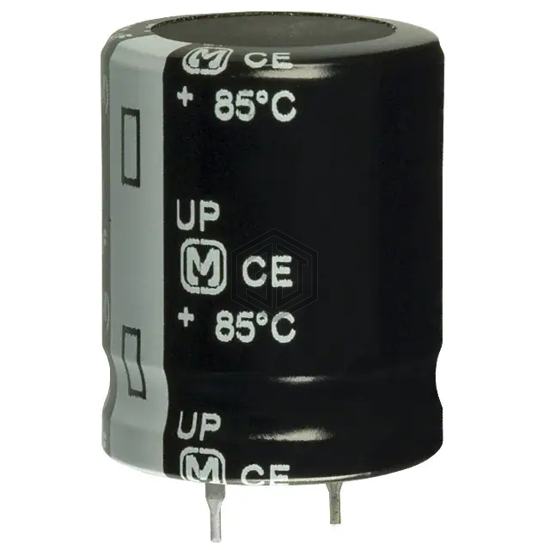

ECO-S1VP682CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,227
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.232 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP682CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYB250ELL682ML40S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 89% | View |
| EEU-FR1A682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 72% | View |
| 16YXS6800MEFC16X35.5 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 72% | View |
| LGY1H682MELC30 | Nichicon | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| EKZE6R3ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 69% | View |
| 10YXJ6800MGC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for ECO-S1VP682CA and get a quote within 24 hours.
