Panasonic Electronic Components
CAP ALUM 3900UF 20% 35V SNAP

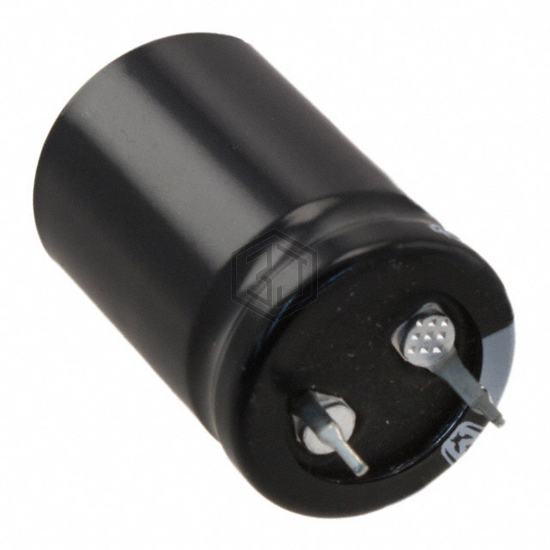

ECO-S1VP392AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,357
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 94mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.94 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.381 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP392AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ392M080J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 80V SNAP | 78% | View |
| LKS1H392MESY | Nichicon | CAP ALUM 3900UF 20% 50V SNAP | 77% | View |
| MAL224666392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 76% | View |
| LKG1J392MESAAK | Nichicon | CAP ALUM 3900UF 20% 63V SNAP | 75% | View |
| LKSH2392MESC | Nichicon | CAP ALUM 3900UF 20% 71V SNAP | 70% | View |
| 16YXG3900MEFC18X20 | Rubycon | CAP ALUM 3900UF 20% 16V RADIAL | 66% | View |
Submit your RFQ for ECO-S1VP392AA and get a quote within 24 hours.
