Panasonic Electronic Components
CAP ALUM 33000UF 20% 35V SNAP

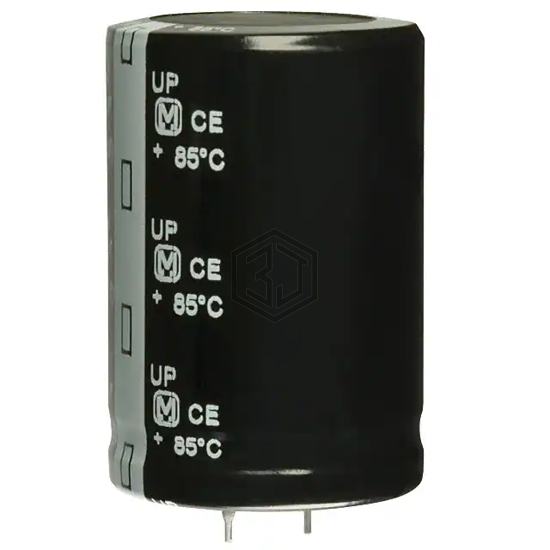

ECO-S1VP333EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,792
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.223 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP333EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ350VSN333MA50S | Chemi-Con | CAP ALUM 22MF 20% 35V SCREW CHAS | 90% | View |
| SMH25VN333M35X45T2 | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 86% | View |
| ALC80E333DD025 | KEMET | CAP ALUM 33000UF 20% 25V SNAP | 82% | View |
| EKMH250VSN333MA50S | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 75% | View |
| MAL205855333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 67% | View |
| ESMH100VSN333MP50U | United Chemi-Con | CAP ALUM 33000UF 20% 10V SNAP | 56% | View |
Submit your RFQ for ECO-S1VP333EA and get a quote within 24 hours.
