Panasonic Electronic Components

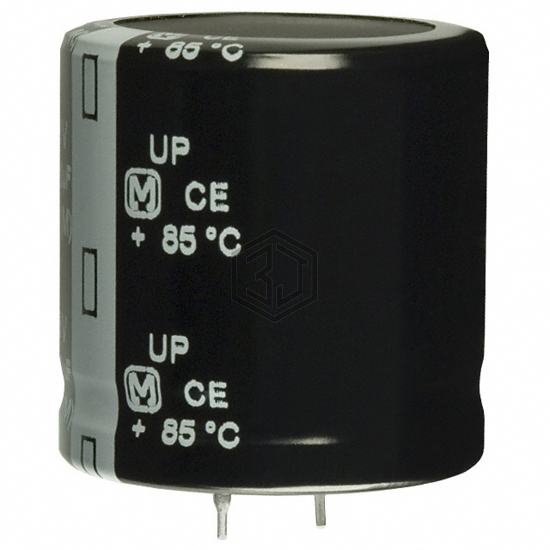

CAP ALUM 18000UF 20% 35V SNAP
ECO-S1VP183EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 18000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,856
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.532 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP183EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ183M035K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 35V SNAP | 100% | View |
| SLPX183M016C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 16V SNAP | 64% | View |
| B41231A3189M000 | EPCOS - TDK Electronics | CAP ALUM 18000UF 20% 10V SNAP | 62% | View |
| LGY1E183MELC35 | Nichicon | CAP ALUM 18000UF 20% 25V SNAP | 61% | View |
| MAL215675183E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 16V SNAP | 61% | View |
| 381LX183M016H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 16V SNAP | 56% | View |
Submit your RFQ for ECO-S1VP183EA and get a quote within 24 hours.
