Panasonic Electronic Components

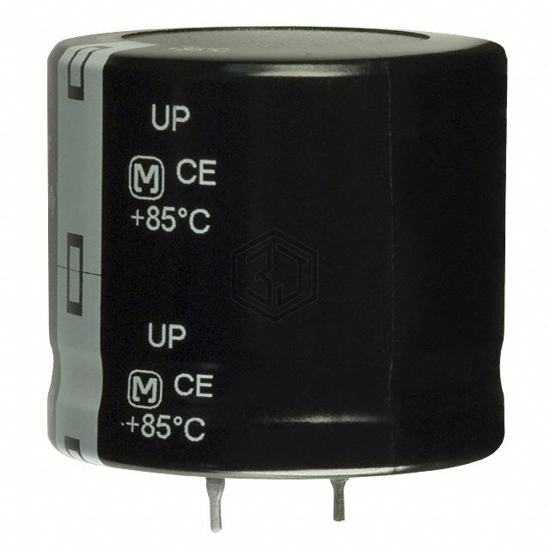

CAP ALUM 15000UF 20% 35V SNAP
ECO-S1VP153EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,398
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 36mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.406 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP153EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41231A7159M067 | EPCOS - TDK Electronics | CAP ALUM 35V POLAR | 99% | View |
| 63MXG15000MEFCSN35X50 | Rubycon | CAP ALUM 15000UF 20% 63V SNAP | 79% | View |
| 25MXC15000MEFCSN25X45 | Rubycon | CAP ALUM 15000UF 20% 25V SNAP | 78% | View |
| EKMH630VSN153MA63W | United Chemi-Con | CAP ALUM 15000UF 20% 63V SNAP | 77% | View |
| MAL205875153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 16V SNAP | 65% | View |
| MAL205844153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 59% | View |
Submit your RFQ for ECO-S1VP153EA and get a quote within 24 hours.
