Panasonic Electronic Components

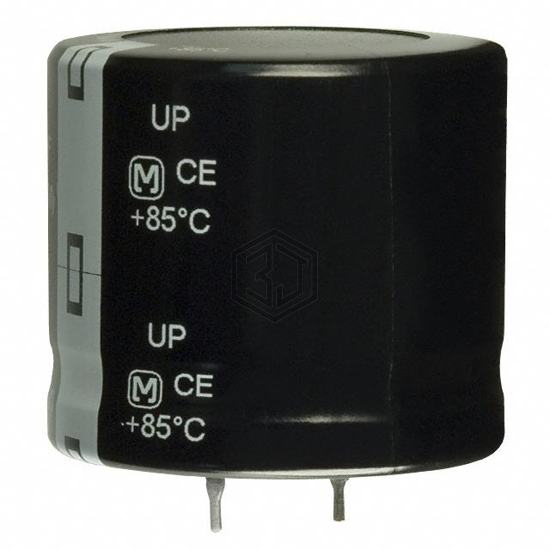

CAP ALUM 12000UF 20% 35V SNAP
ECO-S1VP123EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 12000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 2,069
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.808 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP123EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC80A123EB040 | KEMET | CAP ALUM 12000UF 20% 40V SNAP | 84% | View |
| MALIEYH07CC512H42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 12000UF 20% 50V SNAP | 84% | View |
| 63MXG12000MEFCSN35X45 | Rubycon | CAP ALUM 12000UF 20% 63V SNAP | 79% | View |
| UBY1E123MHL | Nichicon | CAP ALUM 12000UF 20% 25V RADIAL | 72% | View |
| 10YXS12000MEFC18X35.5 | Rubycon | CAP ALUM 12000UF 20% 10V RADIAL | 59% | View |
| 381LX123M016H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 16V SNAP | 56% | View |
