Panasonic Electronic Components

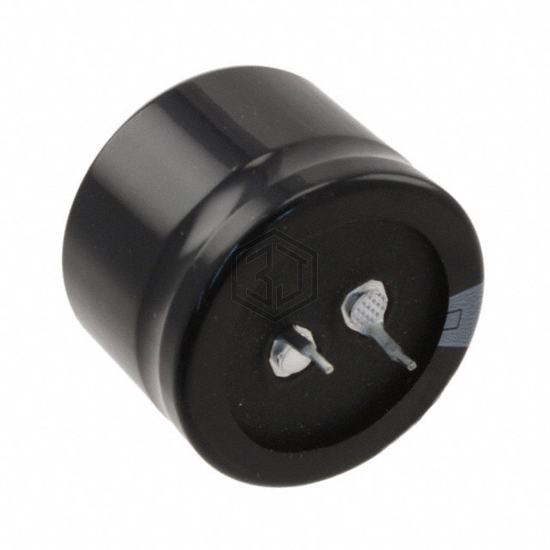

CAP ALUM 10000UF 20% 35V SNAP
ECO-S1VP103EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 8,558
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.083 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VP103EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLS1V103MELZ | Nichicon | CAP ALUM 10000UF 20% 35V SNAP | 92% | View |
| 63USC10000MEFCSN35X40 | Rubycon | CAP ALUM 10000UF 20% 63V SNAP | 72% | View |
| MAL205678103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SNAP | 70% | View |
| 860010381029 | Würth Elektronik | CAP ALUM 10000UF 20% 16V RADIAL | 62% | View |
| ELXZ6R3ELL103ML35S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 55% | View |
| MAL205674103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V SNAP | 54% | View |
Submit your RFQ for ECO-S1VP103EA and get a quote within 24 hours.
