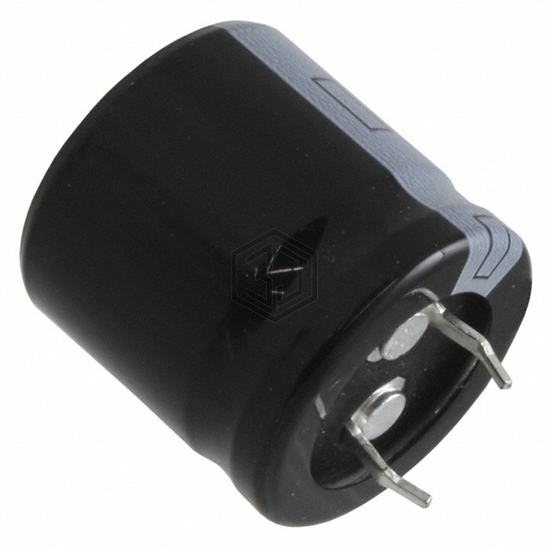

Panasonic Electronic Components
CAP ALUM 4700UF 20% 35V SNAP
ECO-S1VA472CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 8,015
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 88mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VA472CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35MXC4700MEFCSN22X30 | Rubycon | CAP ALUM 4700UF 20% 35V SNAP | 96% | View |
| MAL225056472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 83% | View |
| MAL215816472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V SNAP | 78% | View |
| 517D478M025FR6AE3 | Vishay Sprague | CAP ALUM 4700UF 20% 25V RADIAL | 76% | View |
| 6.3ZL4700MEFCG412.5X30 | Rubycon | CAP ALUM 4700UF 20% 6.3V RADIAL | 70% | View |
| 16ZLJ4700M16X25 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 65% | View |
Submit your RFQ for ECO-S1VA472CA and get a quote within 24 hours.
