Panasonic Electronic Components
CAP ALUM 10000UF 20% 35V SNAP

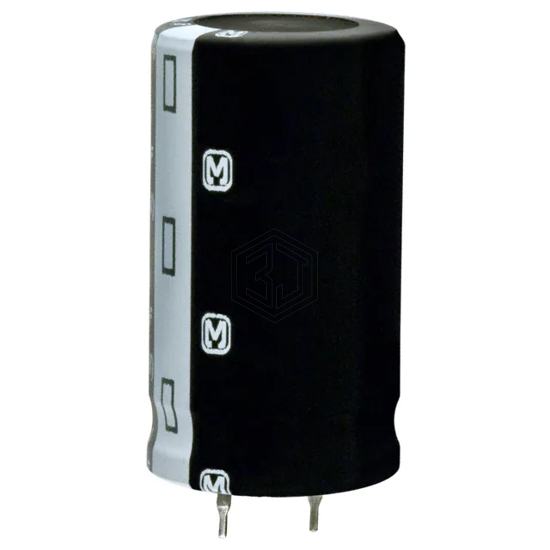

ECO-S1VA103CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,399
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 41mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1VA103CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ350VSN103MP40S | Chemi-Con | CAP ALUM 10000UF 20% 35V RADIAL | 95% | View |
| LSG103M1V---3030S | Surge | CAP ALUM 10MF 20% 35V SNAP IN TH | 94% | View |
| B41505A5109M007 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 25V SNAP | 78% | View |
| 381LQ103M063K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 67% | View |
| MAL214234103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 58% | View |
| MAL211814103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V AXIAL | 55% | View |
Submit your RFQ for ECO-S1VA103CA and get a quote within 24 hours.
