Panasonic Electronic Components

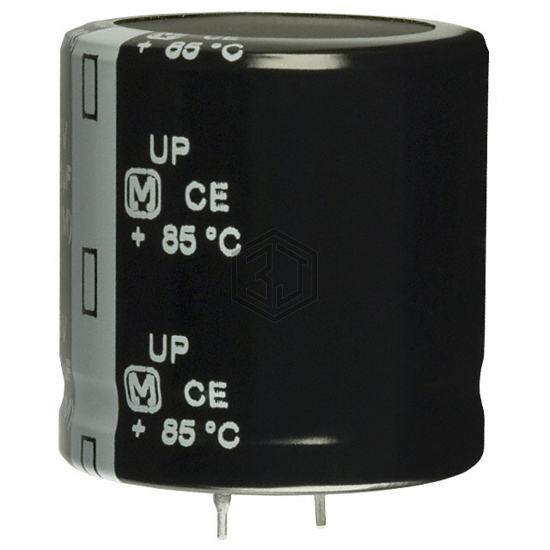

CAP ALUM 5600UF 20% 80V SNAP
ECO-S1KP562EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,735
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.233 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP562EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VSN562MA63T | United Chemi-Con | CAP ALUM 5600UF 20% 100V SNAP | 89% | View |
| EKMH101VRT562MB50T | United Chemi-Con | CAP ALUM 5600UF 20% 100V SNAP | 88% | View |
| LKG1H562MESCBK | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 73% | View |
| VPR562U012N2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 12V RADIAL | 70% | View |
| B41896C4568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 16V RADIAL | 61% | View |
| ELXZ160ELL562ML35S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 54% | View |
