Panasonic Electronic Components
CAP ALUM 5600UF 20% 80V SNAP

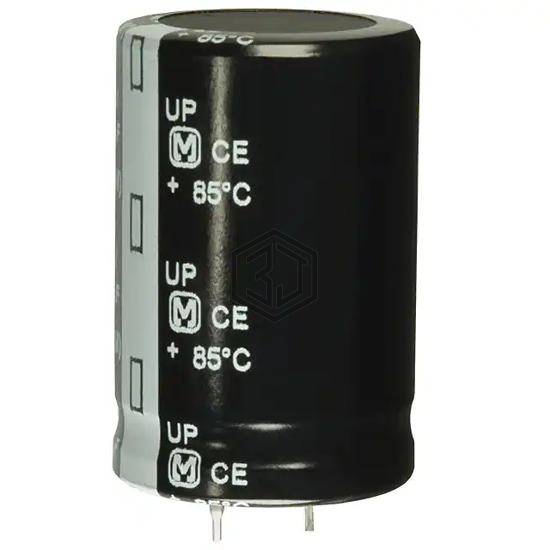

ECO-S1KP562DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,163
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.233 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP562DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225652562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 80V SNAP | 90% | View |
| SLPX562M063E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 63V SNAP | 89% | View |
| MAL215831562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 50V SNAP | 74% | View |
| ESMH500VSN562MP45U | United Chemi-Con | CAP ALUM 5600UF 20% 50V SNAP | 70% | View |
| EEU-FC1C562 | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RADIAL | 61% | View |
| EKZE100ELL562ML25S | United Chemi-Con | CAP ALUM 5600UF 20% 10V RADIAL | 59% | View |
