Panasonic Electronic Components

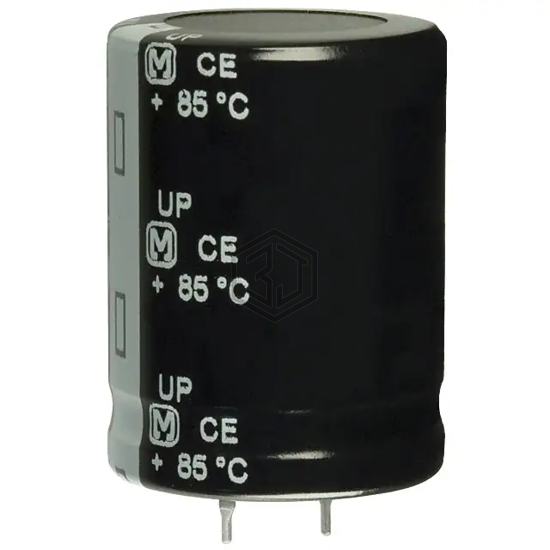

CAP ALUM 4700UF 20% 80V SNAP
ECO-S1KP472DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,737
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 63mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.704 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP472DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K472MESCBK | Nichicon | CAP ALUM 4700UF 20% 80V SNAP | 94% | View |
| EKMH800VNN472MR50S | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 92% | View |
| LKG1H472MESABK | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 75% | View |
| B41858C7478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 35V RADIAL | 70% | View |
| EKZN100ELL472ML20S | United Chemi-Con | CAP ALUM 4700UF 20% 10V RADIAL | 62% | View |
| MAL214695476E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 57% | View |
Submit your RFQ for ECO-S1KP472DA and get a quote within 24 hours.
