Panasonic Electronic Components

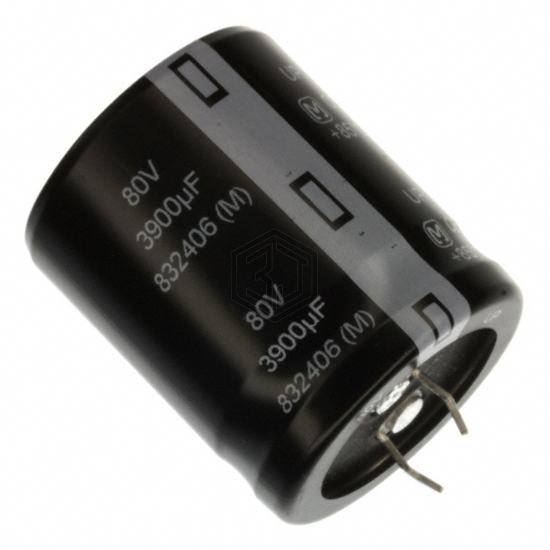

CAP ALUM 3900UF 20% 80V SNAP
ECO-S1KP392DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,186
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 77mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.59 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.129 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP392DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VNN392MA35S | United Chemi-Con | CAP ALUM 3900UF 20% 80V SNAP | 92% | View |
| 50MXC3900MEFCSN25X30 | Rubycon | CAP ALUM 3900UF 20% 50V SNAP | 63% | View |
| EKMH500VSN392MP40U | United Chemi-Con | CAP ALUM 3900UF 20% 50V SNAP | 60% | View |
| MAL214656392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 59% | View |
| EY1C392MS21228E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 52% | View |
| 383LX392M200B062V | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 200V SNAP | 50% | View |
