Panasonic Electronic Components
CAP ALUM 3300UF 20% 80V SNAP

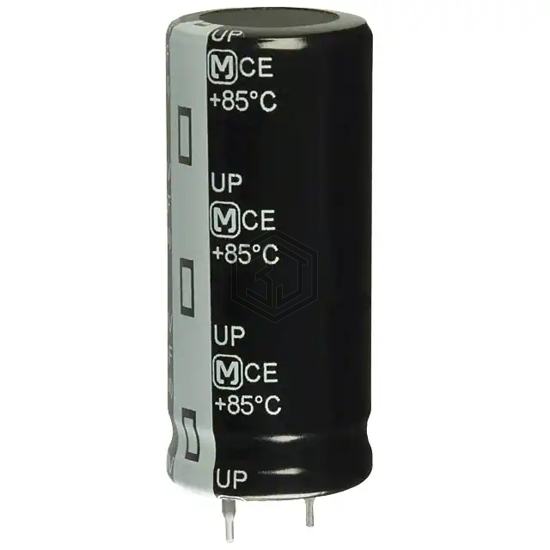

ECO-S1KP332BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,614
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 85mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.692 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP332BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VSN332MQ50S | United Chemi-Con | CAP ALUM 3300UF 20% 80V SNAP | 92% | View |
| EKMH101VSN332MR50S | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 91% | View |
| EKMH101VSN332MQ50U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 86% | View |
| 50ZLJ3300M18X35.5 | Rubycon | CAP ALUM 3300UF 20% 50V RADIAL | 80% | View |
| KY25VB332M18X25LL | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
| MAL205827332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 67% | View |
Submit your RFQ for ECO-S1KP332BA and get a quote within 24 hours.
