Panasonic Electronic Components
CAP ALUM 2700UF 20% 80V SNAP

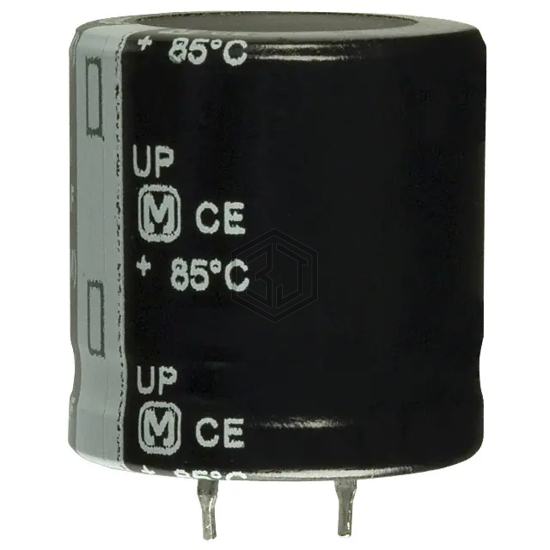

ECO-S1KP272DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,458
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 98mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.197 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP272DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 80V SNAP | 100% | View |
| MAL215839272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 100V SNAP | 86% | View |
| LKG1K272MESCCK | Nichicon | CAP ALUM 2700UF 20% 80V SNAP | 85% | View |
| 35YXG2700MEFCGC18X31.5 | Rubycon | CAP ALUM 2700UF 20% 35V RADIAL | 71% | View |
| SLP272M050C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 50V SNAP | 67% | View |
| EEU-TP1E272S | Panasonic Electronic Components | CAP ALUM 2700UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for ECO-S1KP272DA and get a quote within 24 hours.
