Panasonic Electronic Components
CAP ALUM 1800UF 20% 80V SNAP

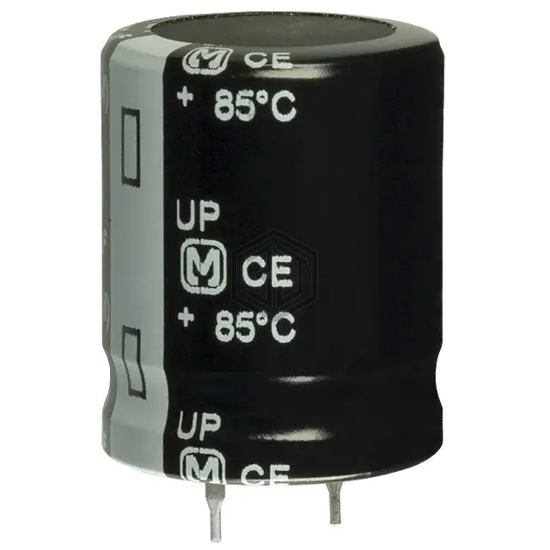

ECO-S1KP182CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,403
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 147mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.898 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KP182CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ182M080H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 80V SNAP | 84% | View |
| EEU-FR1E182 | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 76% | View |
| 35ZL1800MEFCGC16X25 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 70% | View |
| MAL224650182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 65% | View |
| EKYB350ELL182ML20S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 65% | View |
| EEU-FS1C182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for ECO-S1KP182CA and get a quote within 24 hours.
