Panasonic Electronic Components

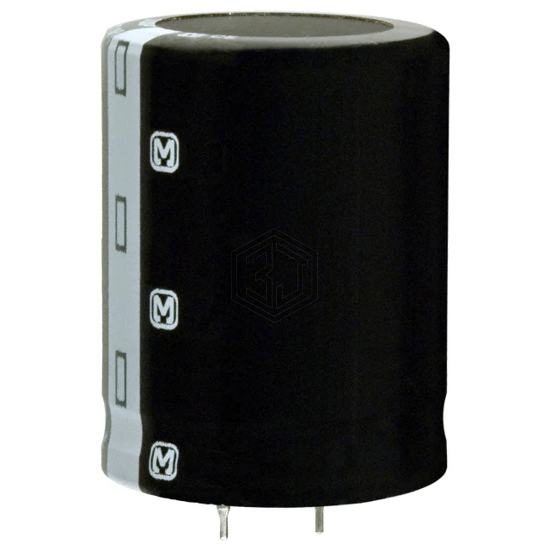

CAP ALUM 5600UF 20% 80V SNAP
ECO-S1KA562EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,050
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.255 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA562EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP562M100H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 100V SNAP | 87% | View |
| MAL214656562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 25V RADIAL | 61% | View |
| EEU-FC1A562 | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V RADIAL | 54% | View |
| LGU1V562MELZ | Nichicon | CAP ALUM 5600UF 20% 35V SNAP | 52% | View |
| 35MXG5600MEFCSN20X40 | Rubycon | CAP ALUM 5600UF 20% 35V SNAP | 52% | View |
| 6.3ZLQ5600MEFC12.5X20 | Rubycon | CAP ALUM 5600UF 20% 6.3V RADIAL | 52% | View |
Submit your RFQ for ECO-S1KA562EA and get a quote within 24 hours.
