Panasonic Electronic Components
CAP ALUM 2700UF 20% 80V SNAP

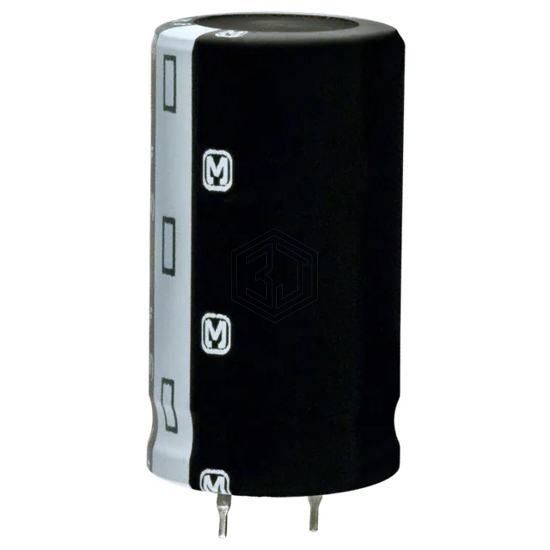

ECO-S1KA272CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,852
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 74mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA272CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215828272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 63V SNAP | 79% | View |
| 50YXH2700MEFC18X40 | Rubycon | CAP ALUM 2700UF 20% 50V RADIAL | 76% | View |
| EKYC500ELL272MM30S | United Chemi-Con | CAP ALUM 2700UF 20% 50V RADIAL | 75% | View |
| EEU-FR1E272SB | Panasonic Electronic Components | CAP ALUM 2700UF 20% 25V RADIAL | 72% | View |
| 50ZLJ2700M18X31.5 | Rubycon | CAP ALUM 2700UF 20% 50V RADIAL | 71% | View |
| MAL214696273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 68% | View |
Submit your RFQ for ECO-S1KA272CA and get a quote within 24 hours.
