Panasonic Electronic Components
CAP ALUM 1500UF 20% 80V SNAP

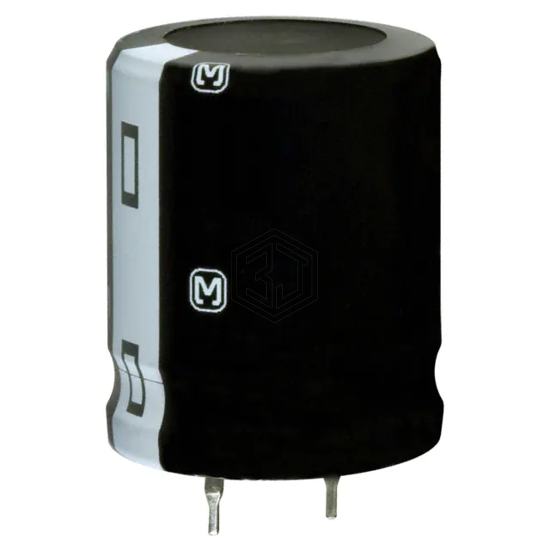

ECO-S1KA152CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,091
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.955 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA152CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF630ELL152MM30S | United Chemi-Con | CAP ALUM 1500UF 20% 63V RAD TH | 87% | View |
| 100MXG1500MEFCSN25X30 | Rubycon | CAP ALUM 1500UF 20% 100V SNAP | 86% | View |
| 63YXG1500MEFC18X40 | Rubycon | CAP ALUM 1500UF 20% 63V RADIAL | 84% | View |
| EEU-TP1V152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
| EGPA500ELL152ML35S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 70% | View |
| EEU-FR1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 67% | View |
Submit your RFQ for ECO-S1KA152CA and get a quote within 24 hours.
