Panasonic Electronic Components

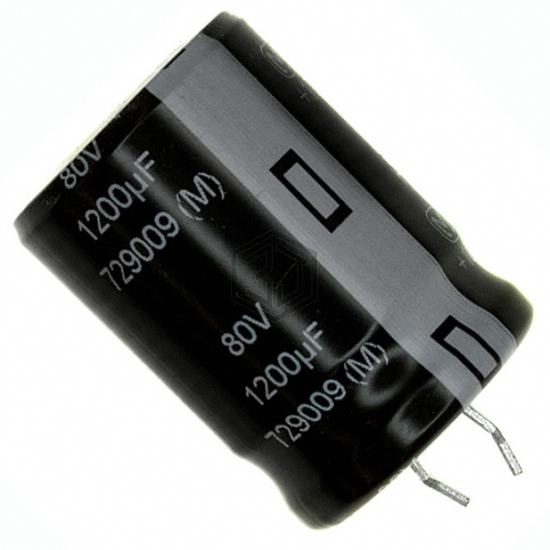

CAP ALUM 1200UF 20% 80V SNAP
ECO-S1KA122BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.725 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1KA122BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX122M080H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 80V SNAP | 100% | View |
| 63VXG1200MEFC22X25 | Rubycon | CAP ALUM 1200UF 20% 63V SNAP | 81% | View |
| MAL215829122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 100V SNAP | 78% | View |
| EEU-FK1C122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 16V RAD TH | 70% | View |
| 25YXH1200MEFCGC18X16 | Rubycon | CAP ALUM 1200UF 20% 25V RADIAL | 70% | View |
| EEU-FC1A122S | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 60% | View |
