Panasonic Electronic Components

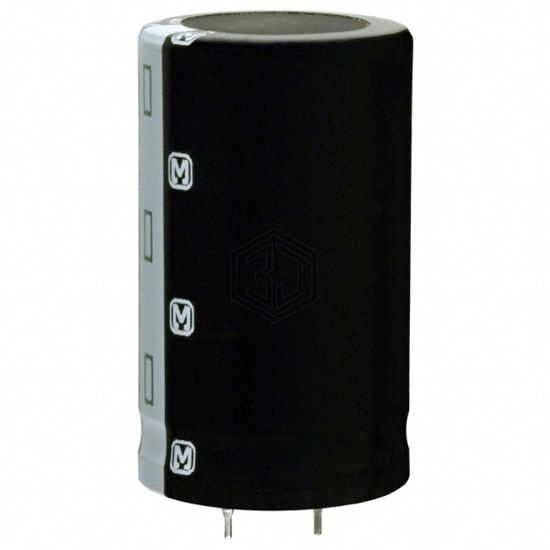

CAP ALUM 6800UF 20% 63V SNAP
ECO-S1JA682DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,347
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.14 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1JA682DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 688LMB063M2DH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 63V SNAP | 95% | View |
| MAL215878682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 89% | View |
| 381LX682M050A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 89% | View |
| EKMH500VNN682MR40U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 87% | View |
| EKMH500VSN682MR40S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 87% | View |
| ELXG800VND682MA50U | United Chemi-Con | CAP ALUM 6800UF 20% 80V SNAP | 85% | View |
