Panasonic Electronic Components

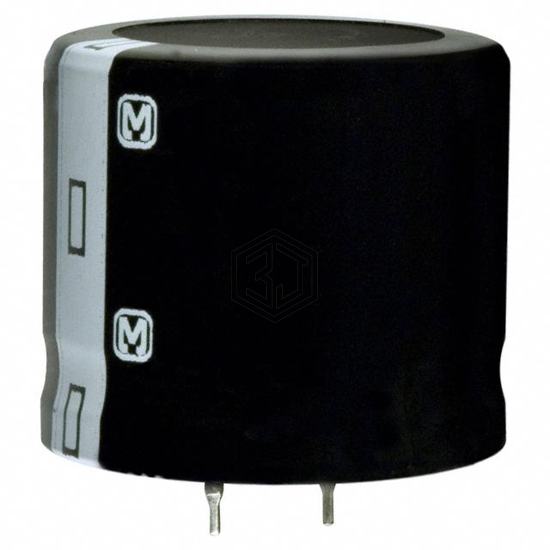

CAP ALUM 4700UF 20% 63V SNAP
ECO-S1JA472EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,234
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 63mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1JA472EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYB250ELL472MLN3S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 77% | View |
| MAL225050472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 35V RADIAL | 77% | View |
| ELXZ250ELL472ML40S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 76% | View |
| EKYB160ELL472MK35S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 74% | View |
| UBY1E472MHL1 | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 69% | View |
| MAL224655472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 64% | View |
Submit your RFQ for ECO-S1JA472EA and get a quote within 24 hours.
