Panasonic Electronic Components
CAP ALUM 3900UF 20% 63V SNAP

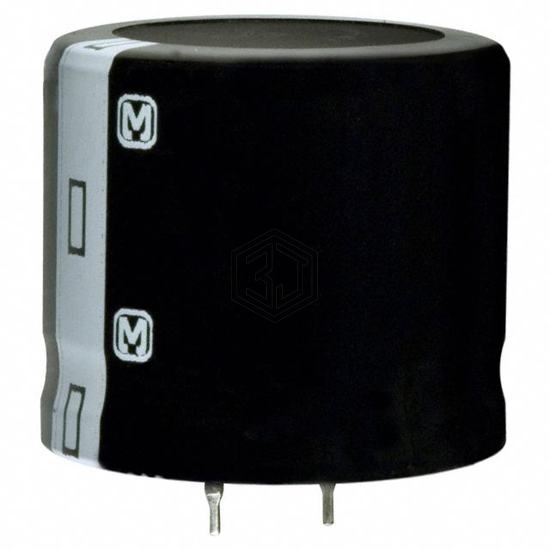

ECO-S1JA392EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,510
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 77mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.105 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1JA392EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXG3900MEFCSN25X45 | Rubycon | CAP ALUM 3900UF 20% 80V SNAP | 88% | View |
| MAL215861392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 50V SNAP | 81% | View |
| 10ZL3900MEFCG412.5X30 | Rubycon | CAP ALUM 3900UF 20% 10V RADIAL | 74% | View |
| EKYB350ELL392MLP1S | United Chemi-Con | CAP ALUM 3900UF 20% 35V RADIAL | 73% | View |
| B41888D4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
| B41605E8398M8 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 63V RADIAL | 65% | View |
Submit your RFQ for ECO-S1JA392EA and get a quote within 24 hours.
