Panasonic Electronic Components
CAP ALUM 2200UF 20% 63V SNAP

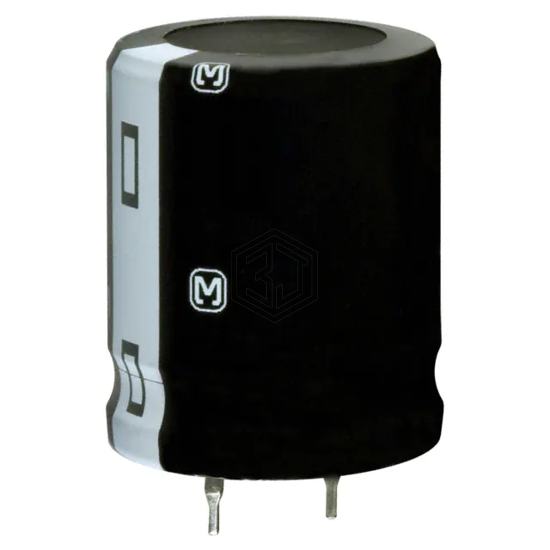

ECO-S1JA222CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 2,142
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 128mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1JA222CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205841222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V SNAP | 83% | View |
| UPA1E222MHD6TN | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 78% | View |
| EGXF350ELL222MU25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RAD TH | 75% | View |
| ELXY250EMC222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 75% | View |
| MAL211917222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 40V AXIAL | 73% | View |
| RXW222M1EBK-1625S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 68% | View |
Submit your RFQ for ECO-S1JA222CA and get a quote within 24 hours.
