Panasonic Electronic Components

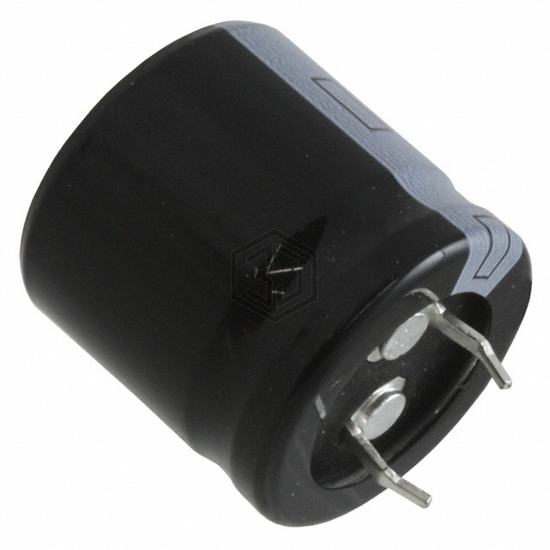

CAP ALUM 1800UF 20% 63V SNAP
ECO-S1JA182CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,366
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 157mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.955 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1JA182CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXH1800MEFCG412.5X30 | Rubycon | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| 10ZLJ1800M10X20 | Rubycon | CAP ALUM 1800UF 20% 10V RADIAL | 70% | View |
| B41858C4188M8 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 16V RADIAL | 70% | View |
| EEU-FC1A182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 69% | View |
| EKZE350EC5182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 64% | View |
| 35ZLH1800MEFCG412.5X35 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for ECO-S1JA182CA and get a quote within 24 hours.
