Panasonic Electronic Components

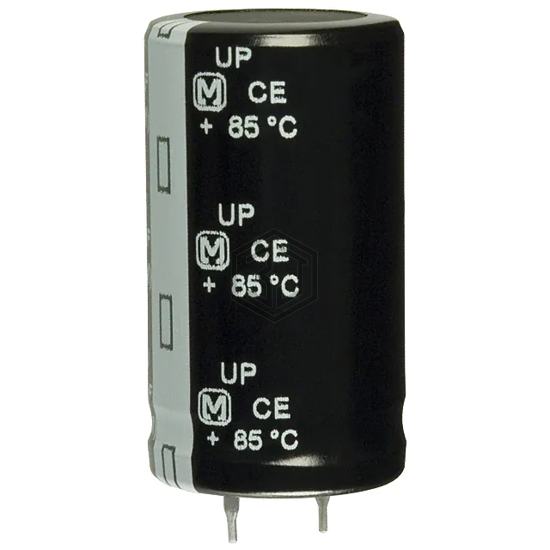

CAP ALUM 8200UF 20% 50V SNAP
ECO-S1HP822CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 1,123
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.072 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP822CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B6828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 50V SNAP | 96% | View |
| MALIEYN07CV482H42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 50V SNAP | 94% | View |
| SLPX822M035A4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 80% | View |
| ESMH800VND822MA45U | United Chemi-Con | CAP ALUM 8200UF 20% 80V SNAP | 71% | View |
| EKMH350VNN822MR30S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 65% | View |
| B41858C4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for ECO-S1HP822CA and get a quote within 24 hours.
