Panasonic Electronic Components
CAP ALUM 6800UF 20% 50V SNAP

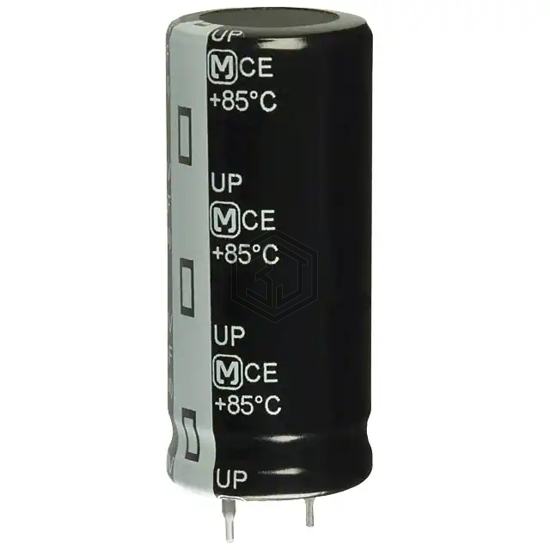

ECO-S1HP682BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,720
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.428 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP682BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELH688M050AS2AA | KEMET | CAP ALUM 6800UF 20% 50V SNAP | 100% | View |
| EKMH500VNN682MA30U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 90% | View |
| LP682M050E7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 89% | View |
| MAL205158682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V RADIAL | 85% | View |
| 688TTA035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 35V AXIAL | 76% | View |
| 16YXH6800MEFC16X40 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 70% | View |
Submit your RFQ for ECO-S1HP682BA and get a quote within 24 hours.
