Panasonic Electronic Components
CAP ALUM 5600UF 20% 50V SNAP

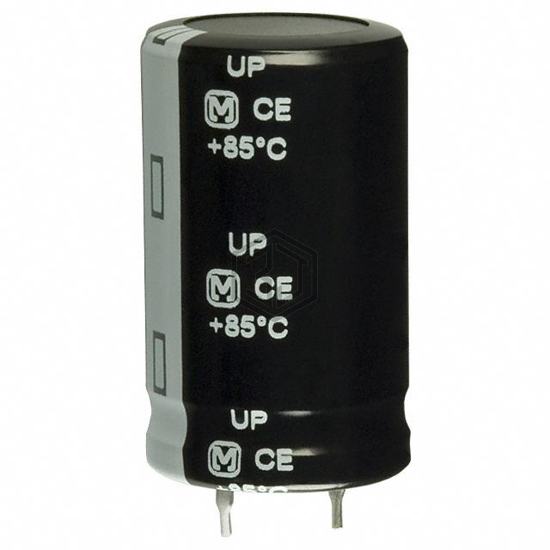

ECO-S1HP562BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 4,211
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 59mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.933 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP562BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VSN562MA35S | United Chemi-Con | CAP ALUM 5600UF 20% 63V SNAP | 91% | View |
| LKSA2562MESZ | Nichicon | CAP ALUM 5600UF 20% 42V SNAP | 85% | View |
| KY10VB562M12X40LL | United Chemi-Con | CAP ALUM 5600UF 20% 10V RADIAL | 71% | View |
| ESMH800VNN562MA35U | United Chemi-Con | CAP ALUM 5600UF 20% 80V SNAP | 71% | View |
| MAL215666562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 25V SNAP | 67% | View |
| 601D568F025JL1 | Vishay Sprague | CAP ALUM 5600UF 25V AXIAL | 61% | View |
Submit your RFQ for ECO-S1HP562BA and get a quote within 24 hours.
