Panasonic Electronic Components

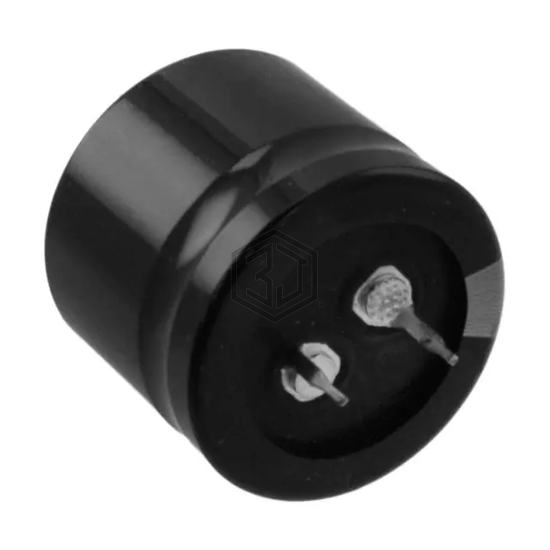

CAP ALUM 4700UF 20% 50V SNAP
ECO-S1HP472DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 1,718
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.485 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP472DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VNN472MR40U | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 91% | View |
| 478LMB050M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 50V SNAP | 79% | View |
| 478LMB080M2DH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 80V SNAP | 77% | View |
| ESMH800VNN472MQ50U | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 71% | View |
| MAL225066472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 70% | View |
| B41505A7478M002 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 35V SNAP | 70% | View |
Submit your RFQ for ECO-S1HP472DA and get a quote within 24 hours.
