Panasonic Electronic Components
CAP ALUM 3300UF 20% 50V SNAP

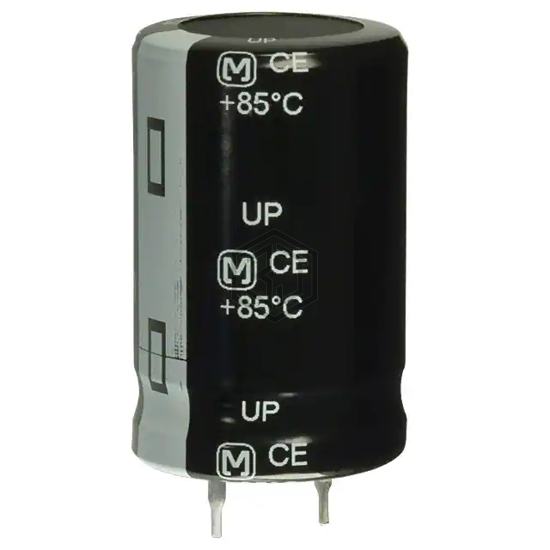

ECO-S1HP332AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 9,718
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.73 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1395 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP332AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63PK3300MEFC18X40 | Rubycon | CAP ALUM 3300UF 20% 63V RADIAL | 91% | View |
| LKS1J332MESZ | Nichicon | CAP ALUM 3300UF 20% 63V SNAP | 87% | View |
| UBT1E332MHD | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 73% | View |
| 338LBA100M2EE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 100V SNAP | 64% | View |
| EGXF250ELL332MK30S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RAD TH | 62% | View |
| 16WXA3300MEFCGC16X16 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ECO-S1HP332AA and get a quote within 24 hours.
