Panasonic Electronic Components
CAP ALUM 2700UF 20% 50V SNAP

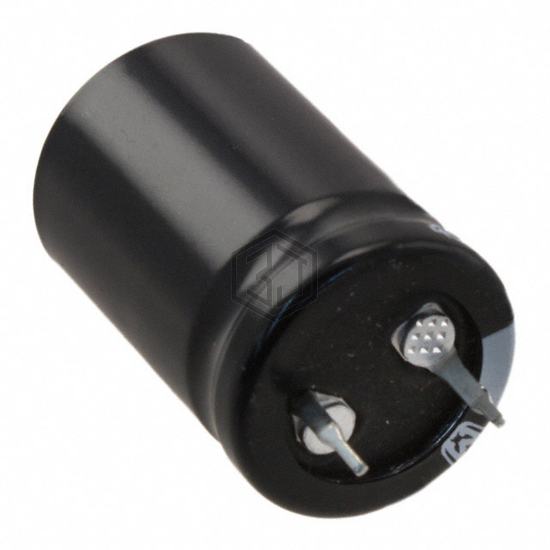

ECO-S1HP272AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,159
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 123mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.898 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP272AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860010681029 | Würth Elektronik | CAP ALUM 2700UF 20% 50V RADIAL | 97% | View |
| KY50VB272M18X40LL | United Chemi-Con | CAP ALUM 2700UF 20% 50V RADIAL | 91% | View |
| LGU1K272MELA | Nichicon | CAP ALUM 2700UF 20% 80V SNAP | 84% | View |
| 25ZL2700MEFCGC16X25 | Rubycon | CAP ALUM 2700UF 20% 25V RADIAL | 74% | View |
| 25ZLS2700MEFC12.5X35 | Rubycon | CAP ALUM 2700UF 20% 25V RADIAL | 74% | View |
| 100MXG2700MEFCSN30X35 | Rubycon | CAP ALUM 2700UF 20% 100V SNAP | 72% | View |
Submit your RFQ for ECO-S1HP272AA and get a quote within 24 hours.
