Panasonic Electronic Components
CAP ALUM 2200UF 20% 50V SNAP

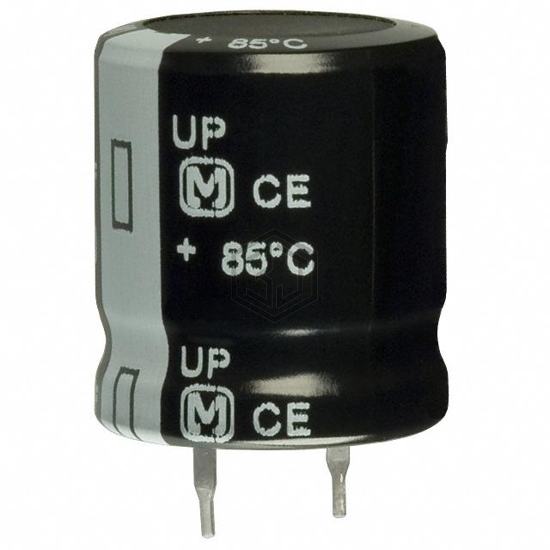

ECO-S1HP222AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 8,072
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 151mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.599 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HP222AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX222M080A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 80V SNAP | 82% | View |
| MAL214690226E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 81% | View |
| 16ZLH2200MEFC12.5X20 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 72% | View |
| 16YXS2200MEFC10X25 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 66% | View |
| EKZN250ELL222MK30S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 66% | View |
| MAL215669222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 100V SNAP | 65% | View |
Submit your RFQ for ECO-S1HP222AA and get a quote within 24 hours.
