Panasonic Electronic Components
CAP ALUM 8200UF 20% 50V SNAP

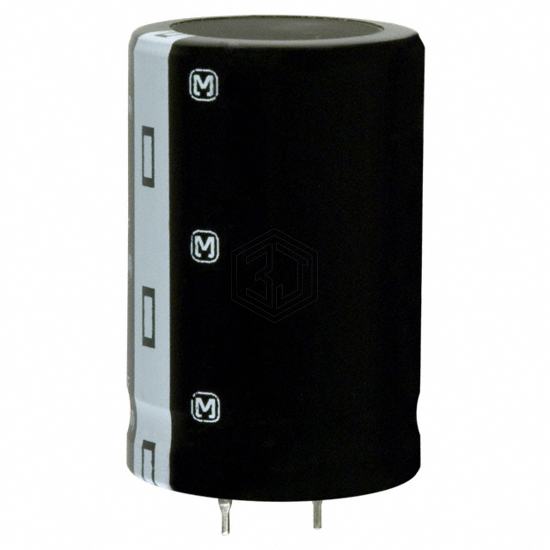

ECO-S1HA822DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,883
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.14 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA822DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VSN822MA35S | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 98% | View |
| MAL215827822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 40V SNAP | 82% | View |
| SLP822M063H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 63V SNAP | 81% | View |
| EKYB250ELL822MMP1S | United Chemi-Con | CAP ALUM 8200UF 20% 25V RADIAL | 78% | View |
| MAL215826822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 25V SNAP | 70% | View |
| ELXZ6R3ELL822ML30S | United Chemi-Con | CAP ALUM 8200UF 20% 6.3V RADIAL | 63% | View |
Submit your RFQ for ECO-S1HA822DA and get a quote within 24 hours.
