Panasonic Electronic Components
CAP ALUM 6800UF 20% 50V SNAP

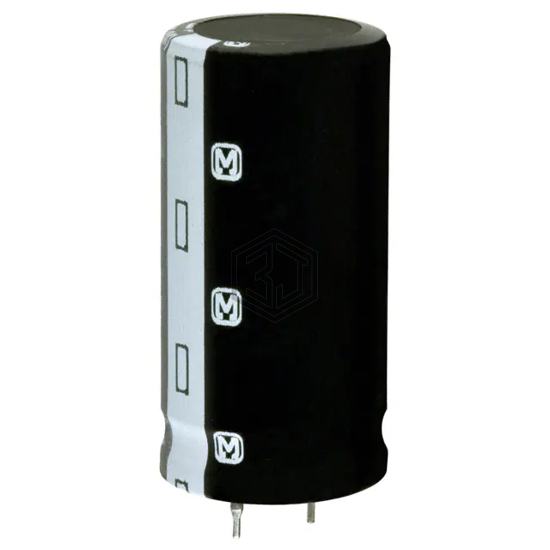

ECO-S1HA682CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,066
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 46mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA682CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELG688M050AS4AA | KEMET | CAP ALUM SNAP-IN 105C | 100% | View |
| B41252B7688M002 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 35V SNAP | 79% | View |
| EKY-160ELL682ML40S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 76% | View |
| MAL205876682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V SNAP | 71% | View |
| MAL225065682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 66% | View |
| EEU-FC0J682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 58% | View |
Submit your RFQ for ECO-S1HA682CA and get a quote within 24 hours.
