Panasonic Electronic Components

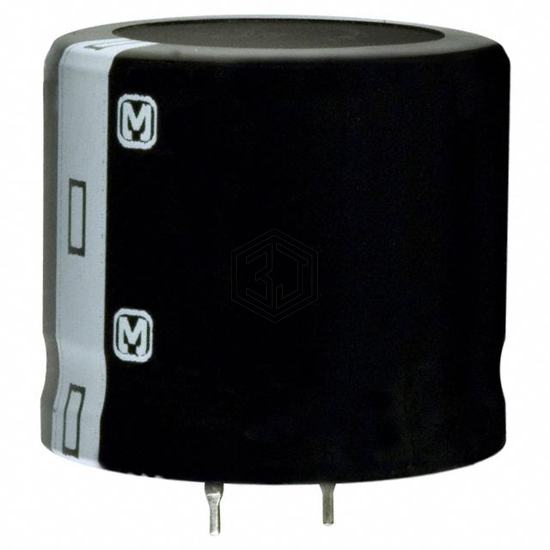

CAP ALUM 5600UF 20% 50V SNAP
ECO-S1HA562EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,633
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.22 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA562EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50VXG5600MEFC30X35 | Rubycon | CAP ALUM 5600UF 20% 50V SNAP | 96% | View |
| MAL215831562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 50V SNAP | 91% | View |
| EKMH630VNN562MR45U | United Chemi-Con | CAP ALUM 5600UF 20% 63V SNAP | 85% | View |
| EKZE100ELL562ML25S | United Chemi-Con | CAP ALUM 5600UF 20% 10V RADIAL | 76% | View |
| 16ZLQ5600MEFC12.5X35 | Rubycon | CAP ALUM 5600UF 20% 16V RADIAL | 74% | View |
| MAL225652562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 80V SNAP | 74% | View |
Submit your RFQ for ECO-S1HA562EA and get a quote within 24 hours.
