Panasonic Electronic Components

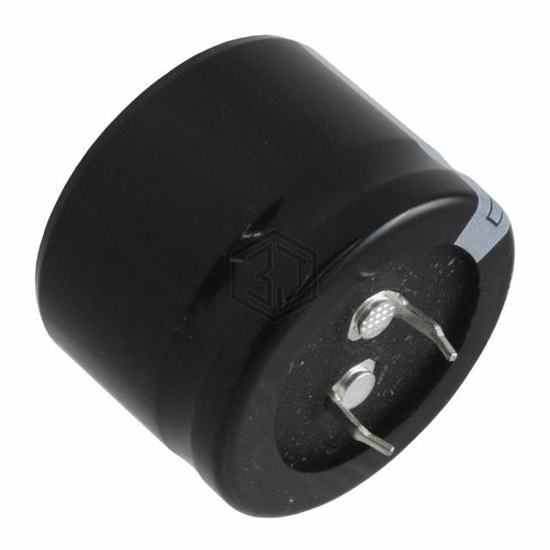

CAP ALUM 4700UF 20% 50V SNAP
ECO-S1HA472EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,888
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 53mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.875 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA472EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215831472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 50V SNAP | 92% | View |
| MAL205877472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 40V SNAP | 85% | View |
| 35PX4700MEFC16X35.5 | Rubycon | CAP ALUM 4700UF 20% 35V RADIAL | 75% | View |
| MAL204866472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 59% | View |
| MAL204856472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 59% | View |
| B41252A5478M007 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 25V SNAP | 59% | View |
Submit your RFQ for ECO-S1HA472EA and get a quote within 24 hours.
