Panasonic Electronic Components
CAP ALUM 3900UF 20% 50V SNAP

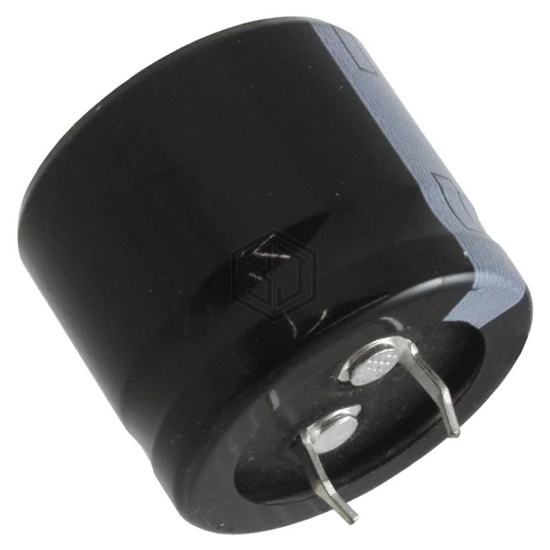

ECO-S1HA392DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 5,592
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 64mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA392DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1C392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RADIAL | 78% | View |
| 10ZLQ3900MEFC12.5X20 | Rubycon | CAP ALUM 3900UF 20% 10V RADIAL | 74% | View |
| EEU-FM0J392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 6.3V RADIAL | 70% | View |
| EEU-FM1A392SB | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RADIAL | 68% | View |
| B41858D4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 65% | View |
| B41605E7398M9S1 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 40V RADIAL | 60% | View |
Submit your RFQ for ECO-S1HA392DA and get a quote within 24 hours.
