Panasonic Electronic Components

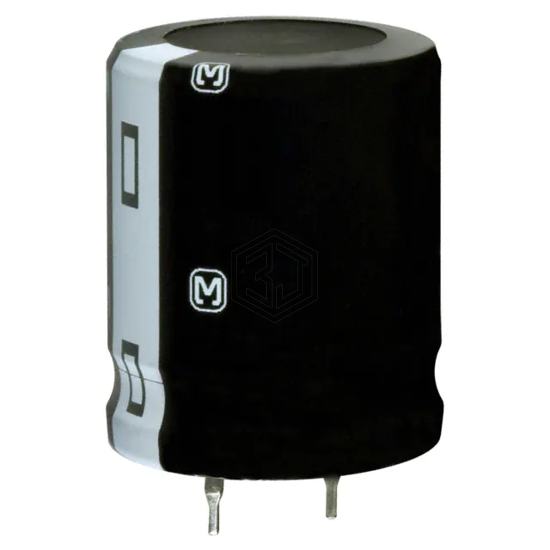

CAP ALUM 3300UF 20% 50V SNAP
ECO-S1HA332CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 1,134
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA332CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213847332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 88% | View |
| B41252B8338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 63V SNAP | 83% | View |
| 80MXG3300MEFCSN25X40 | Rubycon | CAP ALUM 3300UF 20% 80V SNAP | 72% | View |
| 10YXG3300MEFCG412.5X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 72% | View |
| EKY-250ETS332MM25S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
| MAL204856332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 61% | View |
Submit your RFQ for ECO-S1HA332CA and get a quote within 24 hours.
