Panasonic Electronic Components
CAP ALUM 12000UF 20% 50V SNAP

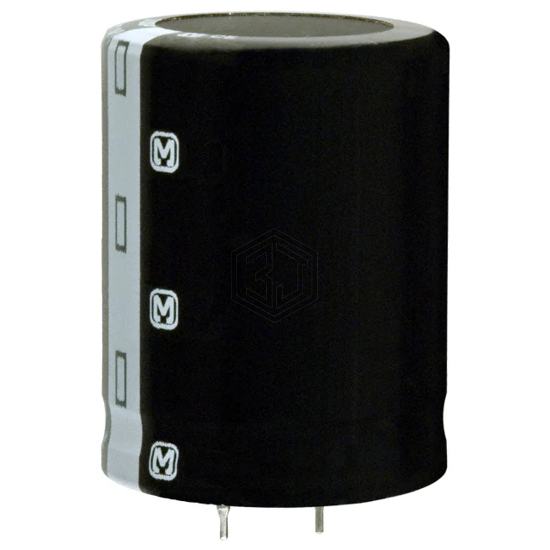

ECO-S1HA123EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 12000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,335
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.175 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1HA123EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50MXC12000MEFC35X40 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 99% | View |
| 50MXG12000MEFCSN30X45 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 99% | View |
| 50MXG12000MEFCSN35X35 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 99% | View |
| 50MXC12000MEFC30X50 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 99% | View |
| LP123M035H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 35V SNAP | 77% | View |
| 35VXG12000MEFC30X45 | Rubycon | CAP ALUM 12000UF 20% 35V SNAP | 75% | View |
Submit your RFQ for ECO-S1HA123EA and get a quote within 24 hours.
