Panasonic Electronic Components

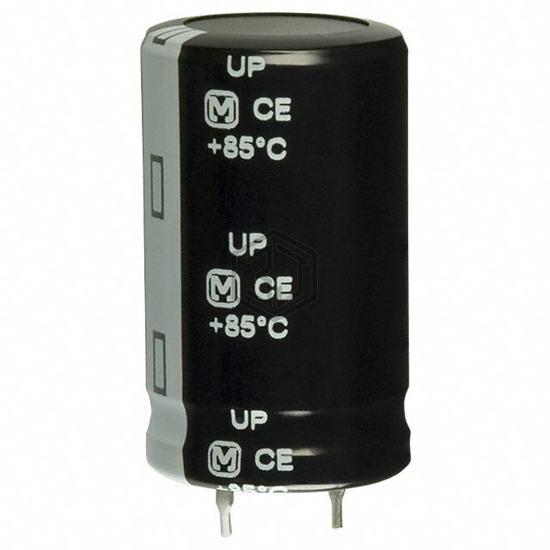

CAP ALUM 8200UF 20% 25V SNAP
ECO-S1EP822AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 7,614
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 65mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.106 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EP822AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH250VNN822MP35U | United Chemi-Con | CAP ALUM 8200UF 20% 25V SNAP | 85% | View |
| EKYA160ELL822MLN3S | United Chemi-Con | CAP ALUM 8200UF 20% 16V RADIAL | 78% | View |
| SLPX822M016A1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V SNAP | 73% | View |
| SLPX822M050C4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 67% | View |
| ELXV100ELL822ML40S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 65% | View |
| 63USC8200MEFCSN35X35 | Rubycon | CAP ALUM 8200UF 20% 63V SNAP | 64% | View |
