Panasonic Electronic Components
CAP ALUM 5600UF 20% 25V SNAP

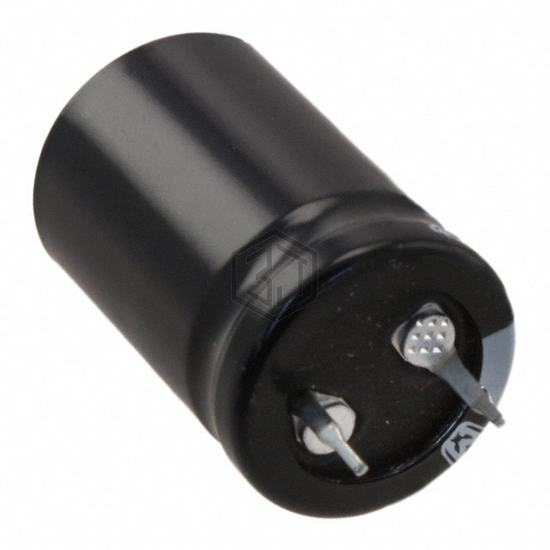

ECO-S1EP562AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 3,462
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 95mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.864 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EP562AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX562M035J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V SNAP | 78% | View |
| TVA1229-E3 | Vishay Sprague | CAP ALUM 5500UF 35V AXIAL | 77% | View |
| 381LQ562M080A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 80V SNAP | 74% | View |
| LGY1J562MELB45 | Nichicon | CAP ALUM 5600UF 20% 63V SNAP | 70% | View |
| LKG1H562MESBBK | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 69% | View |
| EKMH500VNN562MQ40S | United Chemi-Con | CAP ALUM 5600UF 20% 50V SNAP | 67% | View |
Submit your RFQ for ECO-S1EP562AA and get a quote within 24 hours.
