Panasonic Electronic Components
CAP ALUM 39000UF 20% 25V SNAP

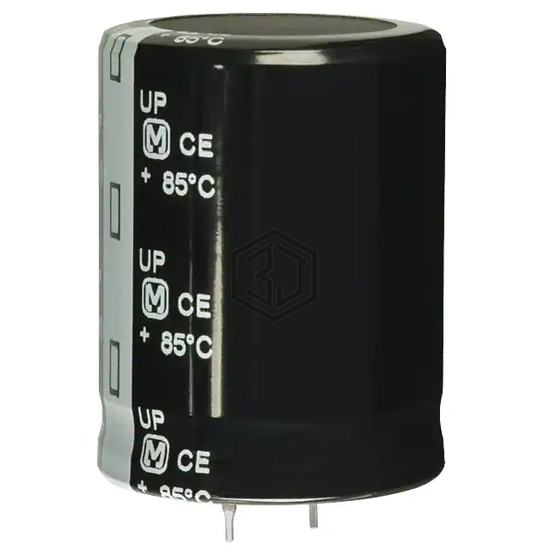

ECO-S1EP393EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 39000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,779
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.464 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EP393EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLPX393M016E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 39000UF 20% 16V SNAP | 80% | View |
| MAL215665393E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 16V SNAP | 70% | View |
| B41231B3399M000 | EPCOS - TDK Electronics | CAP ALUM 39000UF 20% 10V SNAP | 66% | View |
| EKMH160VNN393MR50S | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 65% | View |
| EKMH160VNN393MA40U | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 64% | View |
| ESMH500VQT393MB80U | United Chemi-Con | CAP ALUM 39000UF 20% 50V RAD | 61% | View |
Submit your RFQ for ECO-S1EP393EA and get a quote within 24 hours.
