Panasonic Electronic Components

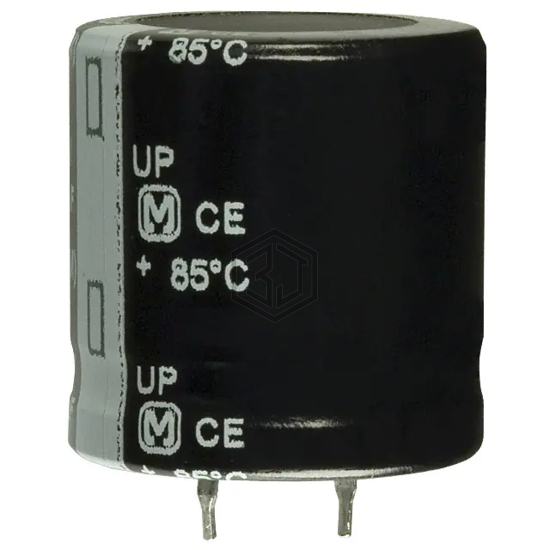

CAP ALUM 15000UF 20% 25V SNAP
ECO-S1EP153DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 2,911
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.325 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EP153DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25USC15000MEFC30X25 | Rubycon | CAP ALUM 15000UF 20% 25V SNAP | 94% | View |
| MAL205155153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 16V RADIAL | 79% | View |
| LKS1V153MESB | Nichicon | CAP ALUM 15000UF 20% 35V SNAP | 79% | View |
| 381LQ153M050K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 50V SNAP | 77% | View |
| MAL215835153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 16V SNAP | 75% | View |
| MAL205644153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 10V SNAP | 61% | View |
Submit your RFQ for ECO-S1EP153DA and get a quote within 24 hours.
