Panasonic Electronic Components
CAP ALUM 8200UF 20% 25V SNAP

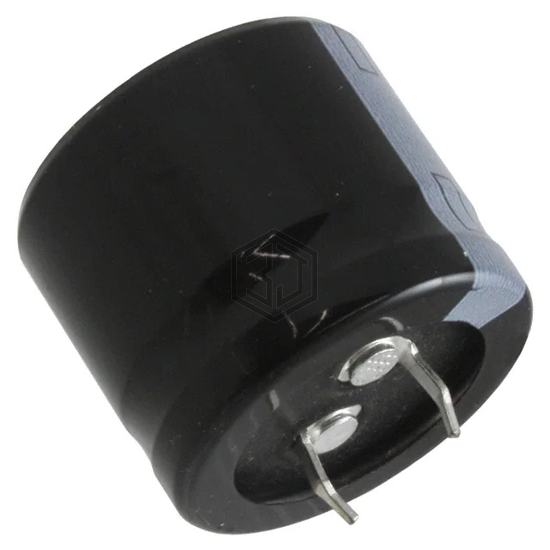

ECO-S1EA822DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 2,559
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 61mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.105 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA822DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYC250ELL822MM30S | United Chemi-Con | CAP ALUM 8200UF 20% 25V RADIAL | 92% | View |
| LP822M035H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 89% | View |
| 381LQ822M035J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 86% | View |
| EEU-FC1A822L | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RADIAL | 78% | View |
| LGY1H822MELB40 | Nichicon | CAP ALUM 8200UF 20% 50V SNAP | 77% | View |
| THAS822M016AB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V FLATPACK | 76% | View |
Submit your RFQ for ECO-S1EA822DA and get a quote within 24 hours.
