Panasonic Electronic Components

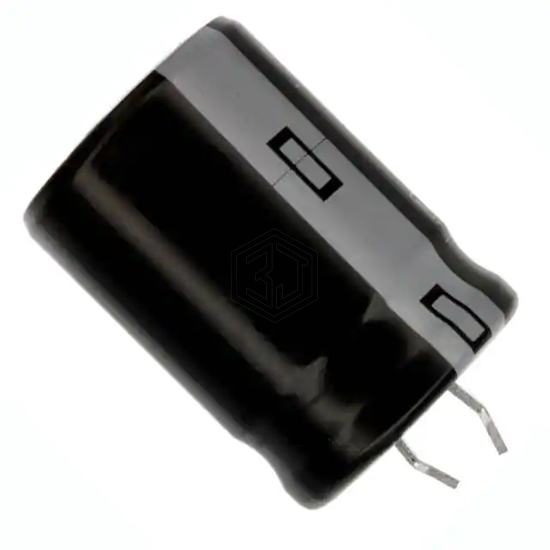

CAP ALUM 8200UF 20% 25V SNAP
ECO-S1EA822BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,811
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 61mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.105 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S1EA822BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25MXG8200MEFCSN22X30 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 93% | View |
| MAL215055822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 81% | View |
| EKYB6R3ELL822MM20S | United Chemi-Con | CAP ALUM 8200UF 20% 6.3V RADIAL | 77% | View |
| B41252A4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V SNAP | 74% | View |
| LP822M016E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V SNAP | 71% | View |
| 381LX822M050K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 65% | View |
Submit your RFQ for ECO-S1EA822BA and get a quote within 24 hours.
